Tel：+86-0335-8507368/361/359
Hot Products：
  • Fiber laser Scribing-cell Machine
  1. Fiber laser Scribing-cell Machine

Fiber laser Scribing-cell Machine

The main function is for cell production,cell cutting,mental material and Silicon, germanium, gallium arsenide and other semiconductor substrate scribing and cutting.





  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  • 1.National patent model,imported brands of key components.
    2.Fiber Laser,stronger environment adaptability
    3.Better quality of laser beam.(Base mode TM00),finer scribing seam,smooth edge for cutting scribing.
    4.Narrow Laser pluse width,high density of energy,faster scribing speed
    5.More efficiency,Low cost of operation
    6.Maintenance free to longer time,no wearing parts to be replaced
    7.Automatic adsorption of solar cell without foot pedal
    8.New Version 5.0english scribing software
    9.Centralized control of parameters,modify & save parameters through software

  • Component Name

    Specification

    Laser

     20W

    Screw rails/lead rail

    Taiwan

    Motor-Drive

    Stepper motor(Leisai),Servo motor(Delta)

       Computer/Fan

    Standard

    Software

    LAILIANLASER

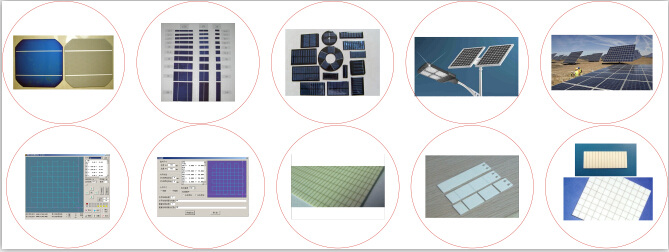

    The application product of Fiber Laser Machine: solar cell sheet cutting and cutting ceramics


  • Laser wave length

    1064nm

    The maximum laser output power

    10/20W

    Laser repetition frequency

    20KHz ~ 100KHz

    Table running speed

    ≤ 240mm

    Scribing width

    ≤ 0.05mm

    Cutting thickness

    ≤ 1.2mm

    Table travel/effective size

    320 × 320mm

    Table area

    350 × 350mm

    Power

    2φ / 220V / 50Hz / 2KW

    Cooling

    Air Cooling
